Parkaire

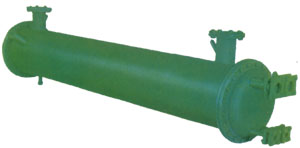

offers Shell & Tube DX – Chillers from 3TR to 200TR
capacity. These Chillers are built in a wide variety of sizes
from 6 inch to 30 inch in diameter. Length vary from 3 feet
to 24 feet over the tube heads. The Chillers are designed
for a pressure of 7 Kg per sq.cm gauge on shell side and 10.6
Kg per sq.cm gauge on refrigerant side.
They are tested at 14 Kg per sq.cm gauge hydraulically followed
by 10.6 Kg. per sq.cm gauge on shell side pneumatically &
21 Kg per sq cm gauge on tube side pneumatically. The Chillers
are fabricated as per TEMA / ASME unfired pressure vessels
codes & ASHRAE standards requirements. Chillers for sea
water marine application or with steels shells are also offered
& designed as per customer specific requirements.
|
